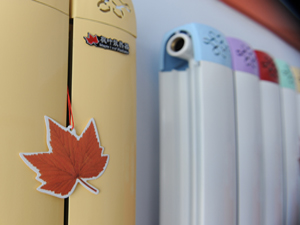

铜铝复合80×80双弧面(TL)Cu-Al Composed Double Arch 80×80




    经典的铜铝复合散热器,造型庄重大方,是大多数人的选择。单柱散热面积大,选用优质纯正铜材铝材,经高压复合而成,热效率高,耐腐蚀性强。经久保值。多种颜色可供选择。

    Classical Cu-Al Composed Heating Radiator,with arched front face, is the most popular choice. Has biggest exposed area per unit. Made by high quality and pure Copper and aluminium, and composed by high water pressure, make it high efficiency, high anti-rust and high second-hand value. Various color available.


规格Specification:

铜铝复合80×80双弧面(TL)Cu-Al  Composed  Double Arch 80×80

型号
Model

中心距
Centre Hole  Distance
(mm)

高度
Height
(mm)

厚度Thickness(mm)

适用面积
Good for
(㎡/柱)

散热量
Power
(W/柱)

TL-400

400

440

80

1.0-1.3

108

TL-500

500

540

80

1.4-1.6

136

TL-600

600

640

80

1.5-1.8

162

TL-1600

1600

1640

80

3.5-4.0

420

TL-1800

1800

1840

80

4.0-4.5

445
