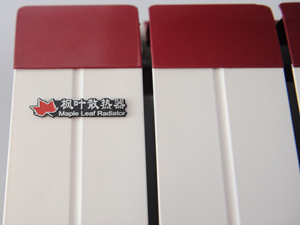

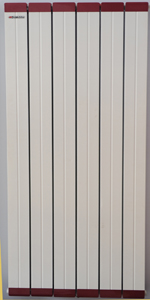

铜铝复合75×75 平面(TL)Cu-Al Composed Plain Face 75×75


    造型典雅,线条硬朗。选用优质铜铝型材,能充分体现主人品位和提升房间价值。实用与装饰共得。热效率高。耐腐蚀性好,是您明智的选择。有多种颜色可供选择。

    Elegant with harder outline. Built by high quality copper aluminum ,can fully show out the owner’s style. Possess both functionality and ornamental. High heat conducting rate, and long anti-rust characters is your wise choise. Various color available.


规格Specification:

铜铝复合75×75 平面(TL)Cu-Al  Composed Plain Face 75×75

型号
Model

中心距
Centre Hole  Distance
(mm)

高度
Height
(mm)

厚度Thickness(mm)

适用面积
Good for
(㎡/柱)

散热量
Power
(W/柱)

TL-400

400

440

75

1.0-1.2

100

TL-500

500

540

75

1.3-1.5

132

TL-600

600

640

75

1.4-1.7

158

TL-1600

1600

1640

75

3.4-3.9

410

TL-1800

1800

1840

75

3.9-4.4

440
