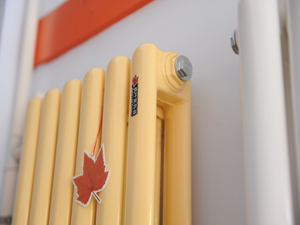

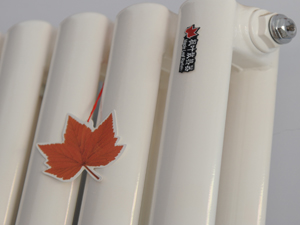

铜铝复合85×50园弧面(TL)Cu-Al Composed Arch face 85×50




 您冬日取暖的必备设备,线条稳重,成本较低,散热性能良好,具有较强的耐腐蚀性。是您节省成本的绝佳选择。有多种颜色可供选择。

    This is your essential appliance in the cold winter, with rougher outline, and lower price. Have relatively high heat efficiency, and anti-rust ability.this is your perfect choice for lower budget. Various color available.

型号
Model

中心距
Centre Hole  Distance
(mm)

高度
Height
(mm)

厚度
Thickness(mm)

适用面积
Good for
(㎡/柱)

散热量
Power
(W/柱)

50PT-500

500

560

100

1.0-1.1

92

50PT-600

600

660

100

1.2-1.3

106

50PT-1600

1600

1660

100

2.6-3.0

236

50PT-1800

1800

1860

100

2.8-3.8

258
